Twitter-like Application Architecture

Twitter-like Social Media Platform

Architecture

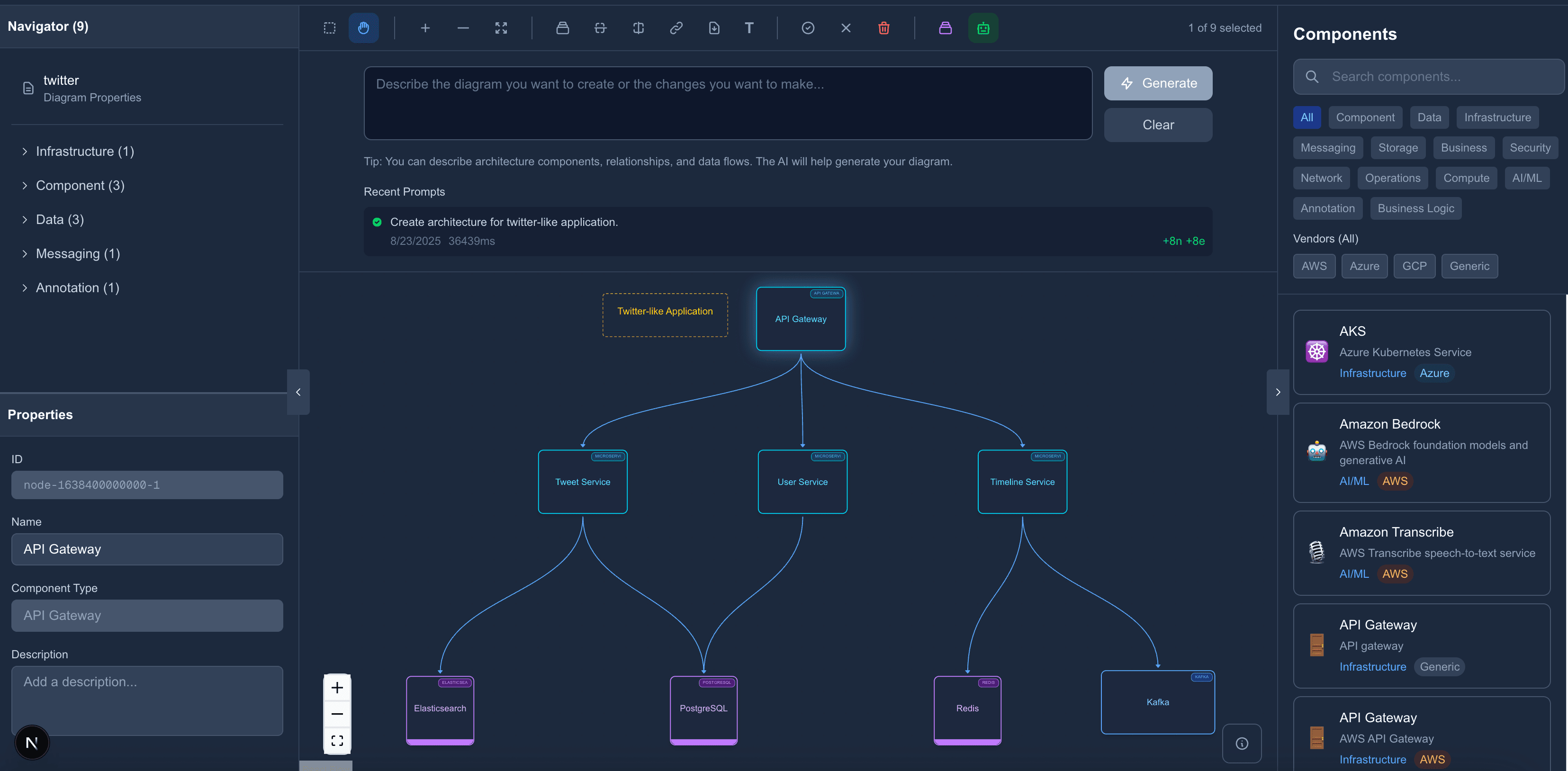

AI Prompt: “Create architecture for twitter-like application.”

Architecture Overview

This AI-generated architecture demonstrates a scalable, modern approach to building a Twitter-like social media platform. The design emphasizes separation of concerns, horizontal scalability, and real-time capabilities essential for social media applications.

Key Components:

  • Load Balancer: Distributes incoming traffic across multiple application instances
  • API Gateway: Single entry point for all client requests with authentication and routing
  • Microservices: Dedicated services for users, posts, notifications, and media handling
  • Message Queue: Asynchronous processing for timeline generation and notifications
  • Cache Layer: Redis for high-speed data access and session management
  • Database Cluster: Distributed database setup for user data and content storage
  • CDN: Global content delivery for media files and static assets

Architecture Benefits:

  • • Scalability: Each component can scale independently based on demand
  • • Reliability: Fault tolerance through redundancy and load distribution
  • • Performance: Caching and CDN ensure fast content delivery globally
  • • Maintainability: Microservices architecture allows independent development and deployment

Generated with AI assistance using dgrm.ai's intelligent diagramming tools.
